- Set up water inlet according to technical drawing
- Set up water outlet d = 50 mm

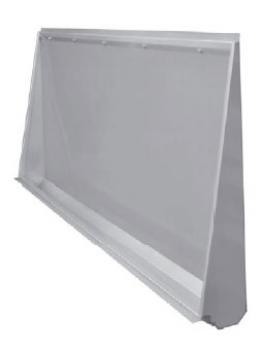

built-in stainless steel urinal trough, 1900 mm, ZP02.2
ZP 02.2 has the same price up to 1900 mm and is a floorstanding stainless steel urinal trough designed for toilettes with high level of damage risk. Standard model contains pipes for water supply and resistant anti-vandal stainless jets. COS time-controlled flushing is recommended for the urinal. Other type of flushing can be delivered per order – e.g. sensor.
Design of the trough differs as for the outlet position on the right or on the left (in front view). When ordering, please specify the required design. The ZP 02.2 urinal trough has no cover as a standard – it can be completed by cover if ordered. Stainless or plastic trap with stainless shell can be delivered to the urinal.
The urinal is made of 1.5 mm thick AISI 304 metal sheet. We offer a model of 2 mm metal sheet – BSZP 01 to heavy-duty services in Safety Section. Other materials (e.g. AISI 316) possible on order.
Item is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1) or equal.
Design of the trough differs as for the outlet position on the right or on the left (in front view). When ordering, please specify the required design. The ZP 02.2 urinal trough has no cover as a standard – it can be completed by cover if ordered. Stainless or plastic trap with stainless shell can be delivered to the urinal.
The urinal is made of 1.5 mm thick AISI 304 metal sheet. We offer a model of 2 mm metal sheet – BSZP 01 to heavy-duty services in Safety Section. Other materials (e.g. AISI 316) possible on order.
Item is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1) or equal.
- Stainless urinal with rinse and water supply
- Fittings
| Water inlet | G 1/2“ |
| Outlet | drain connection d = 50 mm (without braz) |
| Weight | according to chosen version |
