MAP 2 is a coin-operated control intended for regulated usage of washing machine, dryers or other electrical appliances with power requirements referring to the switching abilities of an installed contractor. The power part is not part of the delivery and must be resolved separately in the frame of the electro-installation project. After inserting coins into the control, the contactor is switched on and the device is connected to the power supply for a certain period of time. The user can prolong the time of connection to the power supply by inserting more coins.
On request it is possible to add the coin counter PM 2 or the stainless steel frame with lock cover.

Item is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1) or equal.

Package contents

Matching products

RM 2.1 – power box for MAP 2.3 – 3 wash machines
RM 2.2 – power box for MAP 2.5 – 5 wash machines
PM 2 – coin counter
Stainless steel frame with lock cover

Technical details

Power supply	12 V, 50 Hz
Power requirement	10 VA (20 VA when scanning the coin)
Source of power supply	ZAC 1/50
Power output	12 V, 50 Hz
Output rating capacity	max. 3 A
Adjustable time of output switch	5s - 20 min. for 0,05 EUR in 5 s steps (or for 1 CZK in 5 s steps)
Max. time of output switch	85 hrs.
Types of coins	1; 2; 5; 10; 20 CZK
	0,1; 0,2; 0,5; 1; 2 € and tokens ZT 2
	other coins on request
Weight	2,6 kg

Requirements

Set up alcove for automat installation
Set up cable for power supply – 12 V, 50 Hz from power supply ZAC
Connect the power wiring of the coin operated control and the power box according to the appliance in use
Carry out the modification of the switchboard or set up the power box by transswitches

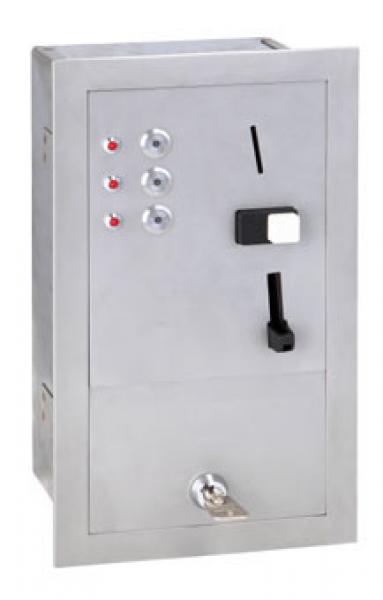

coin-operated automat for controll of 2 – 5 wash maschines or other appliances, MAP2
