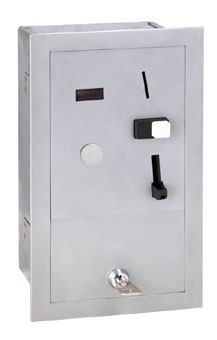

MAK 1.3 is a coin-operated control intended for monitoring two paid items with varying take-off (e.g. consumption of electricity or hot water) and one with the constant value (e.g. electrical heating).

Example of use:

The same as MAK 1.2, but it is possible to monitor take-off of the electricity and hot water together.

Item is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1) or equal.

Package contents

stainless steel casing
stainless steel frame
control electronics
coin reservoir with a lock
1 phase electro-meter with impulse transmitter
(3 phase electro-meter made to order)
Power switch board with clampers and protection is not part of the delivery and must be resolved individually in the frame of the electro-installation.

Matching products

Stainless steel frame with lock cover
coin counter

Requirements

Resolved power part of electro-installation including connection of the control with switch board as per schema – water distribution including setting up water meter and electromagnetic valve must be carried out at measuring of water take-off
Set up alcove for setting of assembly box of the coin operated control.

Technical details

Power supply	12 V, 50 Hz
Power requirement	6 VA (20 VA peak time while scanning coins)
Electricity outlet from the control	12 V, 50 Hz
Carrying capacity of the outlet	max. 3 A
Types of coins	1, 2, 5, 10, 20 CZK; 0,2; 0,5; 1; 2 EUR and tokens ZT 2; other coins made to order
Adjustable rate	tariff 1 1–20 CZK/kWh per 1 CZK
	tariff 2 1–20 CZK/kWh per 1 CZK
	tariff 3 (for water) 1–50 CZK/10 litres
Weight	3,6 kg

coin-operated credit control, concealed installation, Art.-No. MAK1.3
