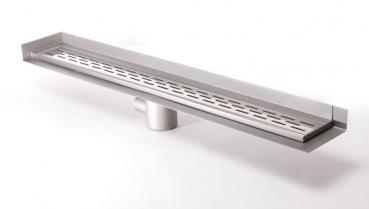

corner floor channel (to 2 walls), 900 mm, PZ011P.900

The PZ 011 P (PZ 011 P) channel has rims for water-proofing and is designed to be installed between 2 walls – its rear and side rims are perpendicular to fit under vertical tiles. Front rim and other side rim are horizontal to fit under tile flooring. As for the side rim we differ between sides – left design (PZ 011L) – vertical rear and left rim; right design (PZ 011P) – vertical rear and right rim.. The channel outlet is located in the middle and its overall height including the outlet is 100 mm only.

Standard lengths of channels are 800 a 900 mm. Other custom made lengths possible. Material – stainless steel AISI 304, other possible on wish (e.g. AISI 316).

In standard design one of 5 types of cover grids can be selected ALFA 1 – BETA 3. Other designs of grids can be provided per order. Standard grids have polished finish. Balottini sand-blast surface finish – decent mat – can be ordered without any effect on price.

Item is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1) or equal.
