designer low draining channel for tile floor, 800 mm, PZ013.800

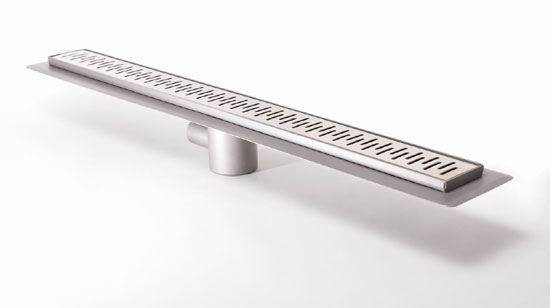

The PZ 013 channel has horizontal rims for water-proofing and to fit under tile flooring(not intended for installation along the wall). The channel outlet is located in the middle and the overall height including the outlet is 100 mm. Direction of the outlet can be set revolvingly. Standard lengths of channels are 800 a 900 mm.

Other custom made lengths possible. Material – stainless steel AISI 304, other possible on wish (e.g. AISI 316).

In standard design one of 5 types of cover grids can be selected ALFA 1 – BETA 3. Other designs of grids can be provided per order. Standard grids have polished finish. Balottini sand-blast surface finish – decent mat – can be ordered without any effect on price.

In standard design one of 5 types of cover grids can be selected ALFA 1 – BETA 3. Other designs of grids can be provided per order. Standard grids have polished finish. Balottini sand-blast surface finish – decent mat – can be ordered without any effect on price.

Item is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1) or equal.
