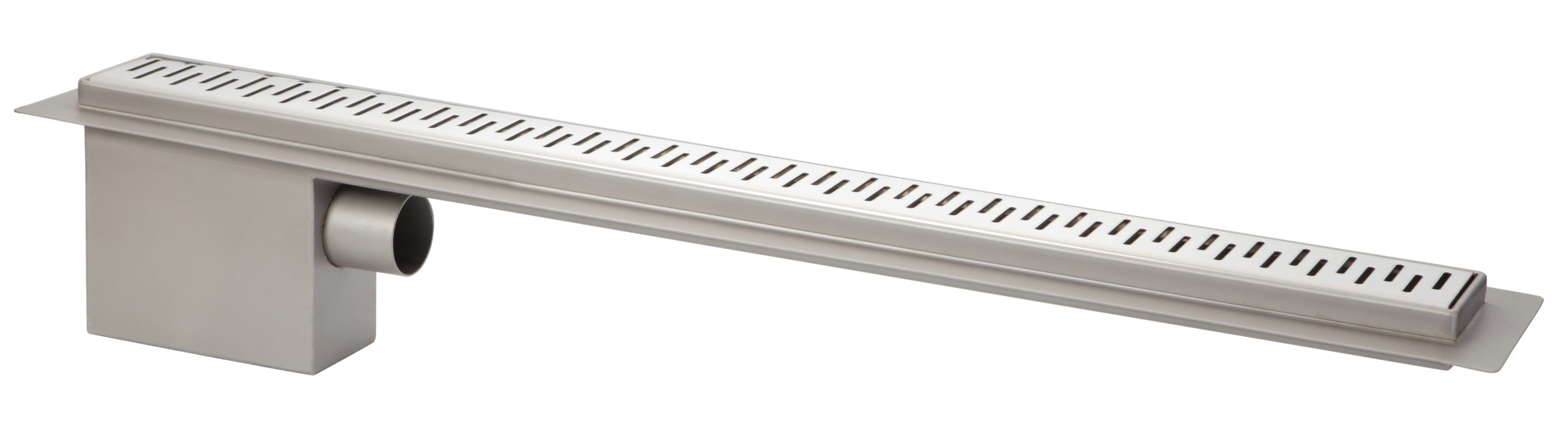

PZ 03 is a stainless steel floor trough for tile floor including flanges on all four sides. Outlet d = 50 mm is located on left or right side from front view (the side must be specified with order).

The trough can be equipped with adjustable screws for levelling the floor unevenness and is offered in three standard lengths – 800, 900 and 1500 mm. Other custom-made lengths are possible. Wide range of grating designs available (also customer made).

Item is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1) or equal.

Package contents

Draining floor trough
Grating
Adjustable screews (only for version including adjustable screews)
Outlet d = 50 mm as per picture

Matching products

Wide range of grating designs available (also customer made)

Requirements

Suitabale hole in the floor for the trough
Set-up waste piping as per picture
Set-up dampproofing as per construction project

draining trough for tile floor, 900 mm, PZ03.900
