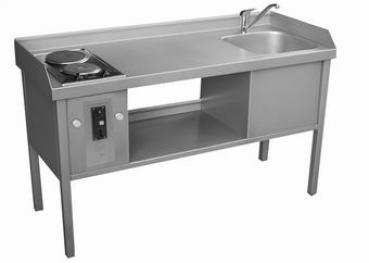

MSK 1 is a kitchen working table equipped by a slot machine (token operated automat per order). The table is provided with two-plate cooker and a sink. After a coin is inserted, the cooker is switched on (cooking mode) for certain (adjustable) period of time and certain amount of hot water (dish-washing mode) is made available. Both “cooking” and “dish-washing” modes can be used concurrently.

If required, the MSK 1 kitchen can be equipped by electric outlet to connect another electric device switched on also by means of the slot machine.
Price of the service, time of cooking or electric outlet operation can be adjusted as well as the amount of hot water.

Item is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1) or equal.

Package contents

st.steel table with sink
lever mixer tap
electric cooker
coin operated automat
through flow water heater (MSK 1.E)
outlet waste trap/siphon
corner valves with filters (MSK 1.E – 1 pc.)
connecting hoses

Matching products

PM 2 – coin counter

Technical details

Water inlet	G 1/2“
Water pressure	1 - 10 bar (0,1 – 1 MPa)
	2 - 6 bar (0,2 – 0,6 MPa)
	– recommended 0,3 MPa without air bubbles and fluctuation (MSK 1.E)
Outlet	d = 50 mm
Power supply	230V, 50Hz (MSK 1.2)
	400/230V, 50Hz (MSK 1.E)
Power input	1800W (MSK 1.2)
	1800 + 3500W (MSK 1.E)
Weight	60 kg

Requirements

Prepared water inlet.
Prepared power supply through main switch (cooker combination).
Prepared outlet d = 50 mm.

kitchen working table with through-flow water heater, MSK1.E
