- Set up suitable hole in the ground:
JOV 02.L – 630 × 630 × 200 mm (top of the hole) and 530 × 530 × 250 mm beneath
JOV 02.Z – 630 x 630 x 200 mm (top of the hole) and 530 × 530 ×1050 mm beneath
ROV 02 – 830 × 830 × 200 mm - Set up outlet d = 110 mm
- Set up sump for ROV 02

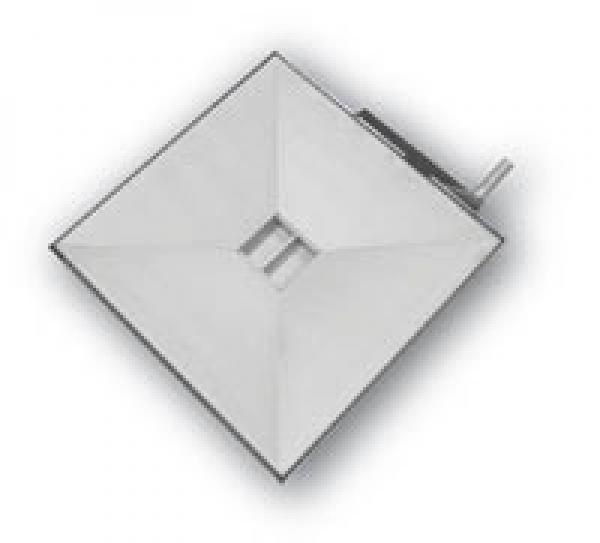

stainless steel sewer inlet, OV02
OV 02 is a stainless steel sewer inlet that is intended for waste disposal of the caravans. Its construction enables vehicles to drive over the sewer.
It is possible to place the sewer on:
– existing sewer shaft (only in combination with the installation frame ROV 02)
– waste trap for summer service JOV 02.L
– waste trap for winter service JOV 02.Z
Waste traps are set up with a siphon that enables connection to the outlet d = 110 mm. Both waste traps are including the installation frame ROV 02.
Item is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1) or equal.
It is possible to place the sewer on:
– existing sewer shaft (only in combination with the installation frame ROV 02)
– waste trap for summer service JOV 02.L
– waste trap for winter service JOV 02.Z
Waste traps are set up with a siphon that enables connection to the outlet d = 110 mm. Both waste traps are including the installation frame ROV 02.
Item is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1) or equal.
- OV 02 + ROV 02
- or OV 02 + JOV 02.L
- or OV 02 + JOV 02.Z
| Dimensions | 540 × 540 × 85 mm |
| Weight-carrying capacity | 3500 kg |
| ROV 02 | |
| Dimensions | 830 × 830 × 200 mm |
| JOV 02.L | |
| Inner dimensions | 500 × 500 × 450 mm |
| Total dimensions | 630 × 630 × 450 mm |
| JOV 02.Z | |
| Inner dimensions | 500 × 500 × 1250 mm |
| Total dimensions | 630 × 630 × 1250 mm |
| Outlet | d = 110 mm |
