- Set up water inlet at the height of 400 mm from floor level and approx. 300 mm from a specified end of the trough
- Set up outlet d = 40 mm in the height f 400 mm from floor level and approx. 150 mm from a specified end of the trough
- Set up cable for power supply – 12 V, 50 Hz from source of power supply ZAC in the height of 400 – 500 mm, approx. 300 mm from end of trough where water inlet is set

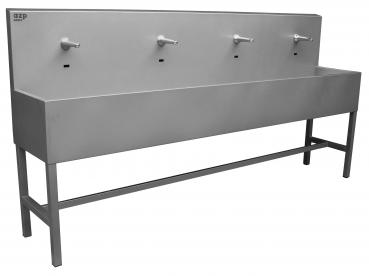

stainless steel wash troughs with four outlets, 2500 mm, floorstanding, AUL03S.3
AUL 03S.3 has the same price up to 2500 mm and is a floorstanding stainless steel wash troughs with sensor-controlled outflow arms. Water turns on automatically when the user’s hands are placed within the sensor’s range and turns off when they have been removed. Water stops running with a certain delay after the hands have been removed from the scanning zone. The trough is produced in a wall-hang version (AUL 03.Z) or fixed on a column (AUL 03.S). The water temperature is set by means of a thermostatic valve.
Wash trough can be additionally equipped with soap dispensers and disinfection lotions, paper towel dispensers, waste receptacles and other accessories. The standard version of the troughs is right (from front view) in accordance with water inlet and outlet.
Item is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1) or equal.
Wash trough can be additionally equipped with soap dispensers and disinfection lotions, paper towel dispensers, waste receptacles and other accessories. The standard version of the troughs is right (from front view) in accordance with water inlet and outlet.
Item is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1) or equal.
- trough with sheathing and rear facing
- column (only AUL 03S)
- outflow arms (2 – 4 pcs as per type of trough)
- electronics with photocell (2 – 4 pcs as per type of trough)
- electromagnetic valves (2 – 4 pcs as per type of trough)
- corner valves – 2 pcs
- thermostatic valve – 1 pc
- connecting hoses
- fittings
- siphon
| Water inlet | G 1/2“ |
| Outlet | d = 40 mm |
| Power supply | 12 V, 50 Hz |
| Source of power supply | ZAC 1/20 (AUL 03.1 až .2) |
| ZAC 1/50 (AUL 03.3) | |
| AUL 03.1 | |
| Number of taps | 2 |
| Power requirement | 12 VA |
| Weight | 40 kg (AUL 03Z.1 – 37 kg) |
| AUL 03.2 | |
| Number of taps | 3 |
| Power requirement | 18 VA |
| Weight | 50 kg (AUL 03Z.2 – 46 kg) |
| AUL 03.3 | |
| Number of taps | 4 |
| Power requirement | 24 VA |
| Weight | 60 kg (AUL 03Z.3 – 55 kg) |
| AUL 03.4 | |
| Number of taps | 5 |
| Power requirement | 30 VA |
| Weight | 70 kg (AUL 04Z.3 – 64 kg) |
